WOMO-RK for suspended windows
WOMO-RK for suspended windows
Couldn't load pickup availability

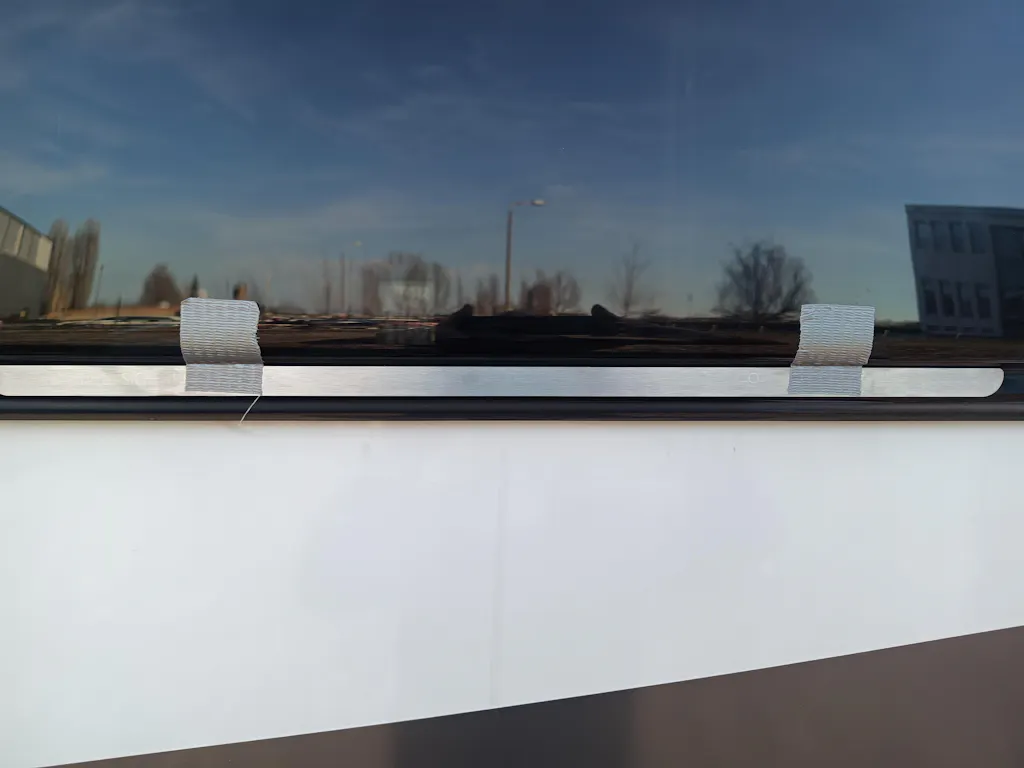

WOMO-RK is the safety profile for frameless windows with a small overhang downwards, as installed on many motorhomes. Windows in vans are usually significantly larger than the wall cutout - here WOMO-AK needed.
WOMO-RK is made of 2 parts and is firmly glued to the acrylic glass pane - it is pre-equipped with high-performance adhesive tape. The panel on the front serves to equalize tension and act as a deterrent. The WOMO angles for securing are always included in the delivery.
After determining the usable straight lines, select the greatest possible safety profile.
Please note: The safety profile is 2cm shorter on the inside because the tabs are indented by 1cm on each side.
Examples:
Usable straight line is 60 cm >>> WOMO-RK-T- 62
Usable straight line is 49.5 cm >>> WOMO-RK-T- 52
Usable straight line is 42 cm >>> WOMO-RK-T- 37
Then be sure to check the position of the tabs; they must not collide with the locks. For sizes 37 and 52 there is the TS version with further indented tabs.
type | length | distance left | distance to the right | distance between the tabs on the outside | distance between the tabs inside |
WOMO- | L | AL | AR | AW | IW |
RK-T-22 | 220 | 10 | 10 | 200 | 100 |
RK-T-27 | 270 | 10 | 10 | 250 | 150 |
RK-TS-27 | 270 | 60 | 60 | 150 | 50 |
RK-T-37 | 370 | 10 | 10 | 350 | 250 |
RK-TS-37 | 370 | 60 | 60 | 250 | 150 |
RK-T-52 | 520 | 10 | 10 | 500 | 400 |
RK-TS-52 | 520 | 60 | 60 | 400 | 300 |
RK-T-62 | 620 | 10 | 10 | 600 | 500 |
RK-T-72 | 720 | 10 | 10 | 700 | 600 |
RK-T-82 | 820 | 10 | 10 | 800 | 700 |
RK-T-92 | 920 | 10 | 10 | 900 | 800 |
RK-T-102 | 1020 | 185 | 185 | 670 | 570 |
Sketch:
(Dimensions in mm)
Note: Depending on the individual installation situation, the tabs of the security profile may be located directly next to the window locks.
