WOMO-AK for curtain-mounted van (VAN) windows

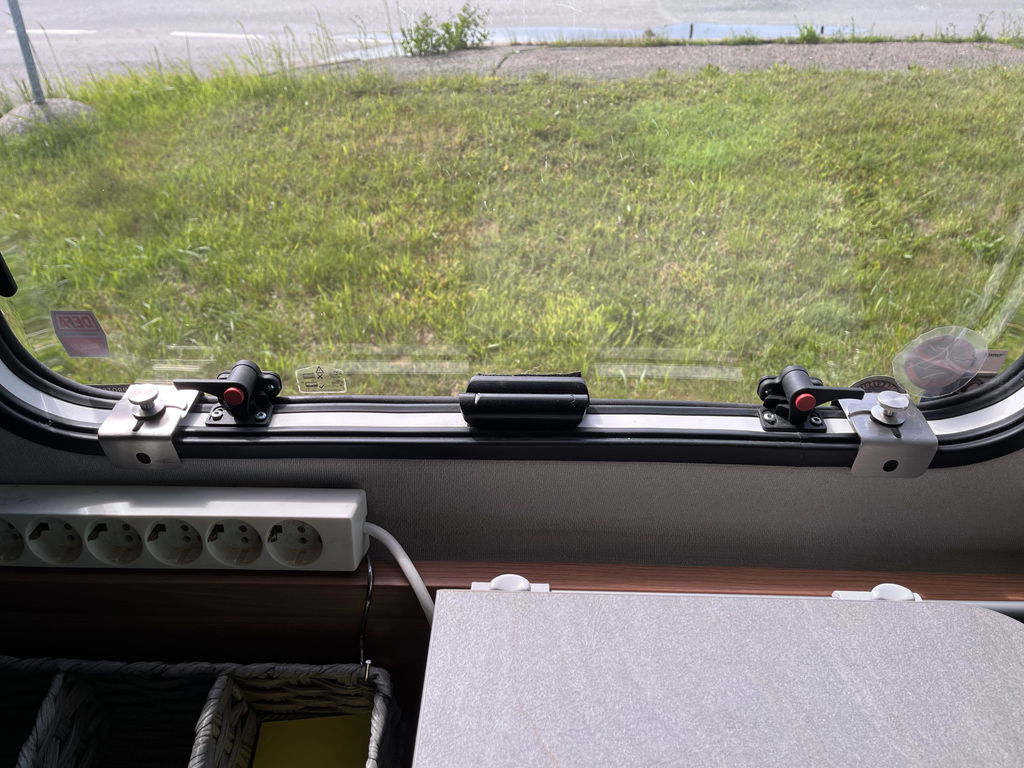

WOMO-AK is the security profile for frameless windows with a large overhang. The distance from the bottom edge of the window to the bottom edge of the lock is more than 60mm. The system is attached to the acrylic glass pane from below and glued from the inside - it is equipped with high-performance adhesive tape for this purpose.

Difference to WOMO-RK: Only suitable for suspended van windows with a large overhang! For WOMO-AK, the distance between the bottom edge of the window and the bottom edge of the centrally mounted locking mechanism must be greater than 60mm.

WOMO-AK is available in different widths and heights. For example, WOMO-AK-60-115 is 60cm wide and 115mm high.

The profile width is determined by the available usable straight line and the distance between the locking points. If the locking point is in the middle, this measurement is irrelevant.

In order to select the appropriate profile height, you need the measurement from the bottom edge of the window to the bottom edge of the locking mechanism:

The size of the safety profile should be selected so that the available usable space is used as best as possible and there is no collision with the locking devices.

Note: Depending on the individual installation situation, the tabs of the security profile may be located directly next to the window locks.
